CPurlin Roll Forming Machine
1. Main speficication:
Machine can produce C purlin. Through change rings on the shafts adjust size. Machine include 3T manual decoiler, coil width: 500mm, expand range: 420-510mm. Machine adopts one station of flatten system, 7 rollers, upper is three rollers, down is four rollers., According to customer request, will has two units punching system and post cutting system.
2. The Chart of Process Flow
Uncoiler— Flatten—2units punching system—Roll Forming—Post-cutting—Out table
3.Machine Detailed Parameters
| 1 | Machine structure | Wall panel structure |
| 2 | Total power | Motor power-15kw Hydraulic power-5.5kw |
| 3 | Roller stations | About 14 stations with one station of rectify |
| 4 | Productivity | 0-15m/min |
| 5 | Drive system | By chain |
| 6 | Diameter of shaft | ￠70mm, 45# forge steel |
| 7 | Voltage | 380V 50Hz 3phases (Customized) |
4.Specification of Components
| No | | Technical Specification & Remark |
| 1 | Main Roll Forming Machine | - Main motor power:30kw
- Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
- Roll station: 14 stations
- Roller material:ASTM52100 chrome plated surface with hardness 58-62 degree
- Shaft diameter: ￠70mm material: 45# forge steel with quenching and tempering
|
| 2 | Machine structure: | - Main frame by 350H beam welding
- Machine structure: Wall panel
- Chain driving system
|
| 3 | Post cutting system | - Machine adopts hydraulic post cutting system.
- Cutting power by hydraulic, 7.5KW
- Cutting after forming: Cut the sheet after roll forming to required length
- Cutting motion: The main machine will stop when cutting, after the motion the machine will continue automatically.
- Material of blade:Cr12 with heat treatment 58-60°
- Tolerance of length: 3000mm+/- 1.5mm
|

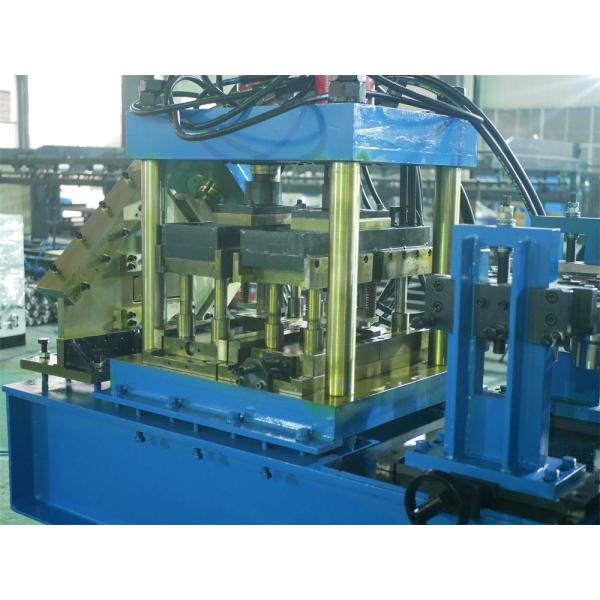

5.Machine pictures for reference
6.Warranty
- Warranty: 1 year warranty from date of shipment
- Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
