Roof Ridge Capping Roll Forming Machine Durable 350H Steel Frame Precision Engineering

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Model NO. : Ridge tile machine

Certification : CE, SGS

Customized : Customized

Transmission Method : Electric

Transmission Mode : 1inch Chain Drive

Transport Package : Plastic Film & Steel Wire Fixed

Origin : Dongguang, Cangzhou City

Production Capacity : 400sets/ Year

Tile Type : Colored Steel

Condition : New

Usage : Roof

Model : Ridge Tile Machine

Electronic Control System : PLC

Specification : 6000mmx1300mmx1400mm

HS Code : 8474801000

Contact Now

Roof Ridge Tile Forming Machine

This high-performance roof ridge cap roll forming machine is specifically engineered for producing precision metal ridge caps used in roofing systems. Utilizing continuous cold roll forming technology, the machine transforms galvanized or pre-painted steel coils into accurately shaped ridge cap profiles that deliver both aesthetic appeal and functional performance.

The finished products provide excellent sealing performance, effectively protecting roofs from water penetration while enhancing overall durability and delivering a clean, uniform appearance.

Key Features
  • Robust construction with precision-engineered roller stations for stability and accuracy
  • Multi-stage rolling design ensures consistent shaping and high dimensional precision
  • Advanced PLC control system with user-friendly touch screen interface

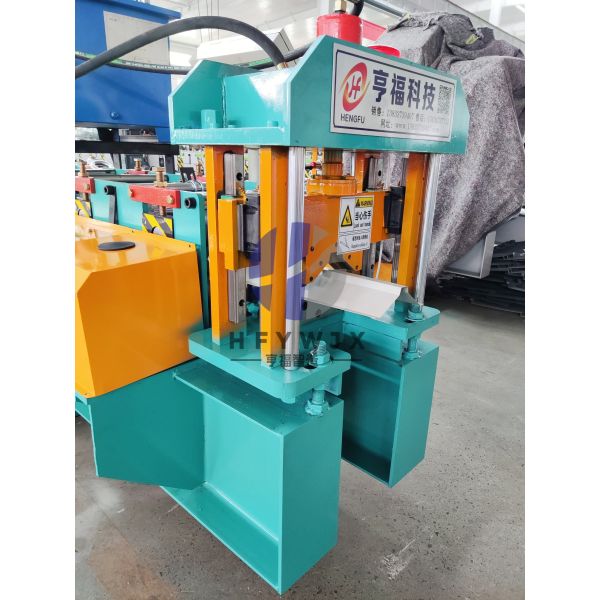

  • Hydraulic cutting system delivers clean, burr-free cuts
  • High automation reduces labor costs and increases efficiency
  • Versatile processing capabilities for various metal materials and thicknesses
  • Customizable to produce different ridge cap profiles
Technical Specifications
Model NO 460 Ridge tiles
Machine frame 350H steel frame
Motor 4kW or 5.5kW oil pump motor
Wall panel thickness 14mm wall panels
Type of Driven Chain drive
Number of rolling mill sets 16-row molding
Spindle diameter 70 shafts
Shear power 5.5kW servo drive
Wheels 45# wheels
Usage Roof
Specification 6000mmx1300mmx1400mm
Origin Cangzhou, Hebei
Warranty 1 year
Product Gallery
Roof Ridge Capping Roll Forming Machine Durable 350H Steel Frame Precision Engineering Roof Ridge Capping Roll Forming Machine Durable 350H Steel Frame Precision Engineering Roof Ridge Capping Roll Forming Machine Durable 350H Steel Frame Precision Engineering
Frequently Asked Questions
Can it be connected to an automatic stacker?
Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.
Can a laminating machine be added?
Yes, it allows for an integrated production line combining lamination and forming.
Can the voltage be customized to meet our country's standards?
Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.
Is the length of the discharge rack adjustable?
Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.
Are customers able to visit the factory to test the machine and observe its performance firsthand?
We welcome customers—or a designated third party—to visit our factory to inspect the machine and conduct trial production runs using their own materials.
